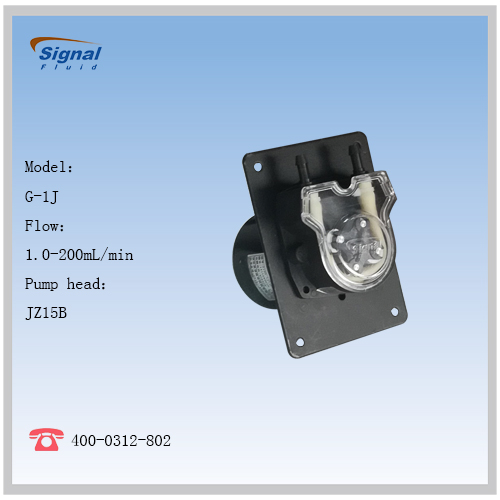

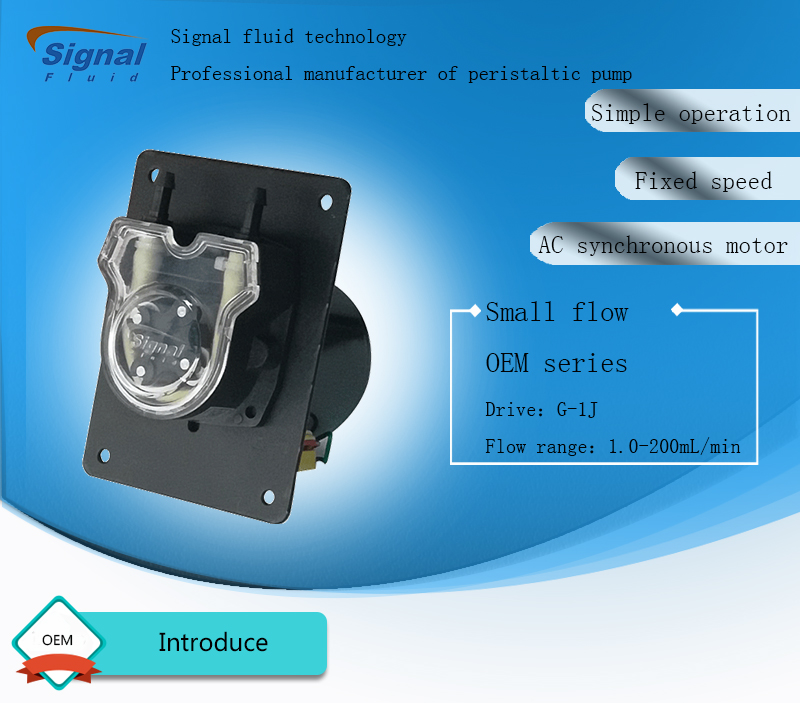

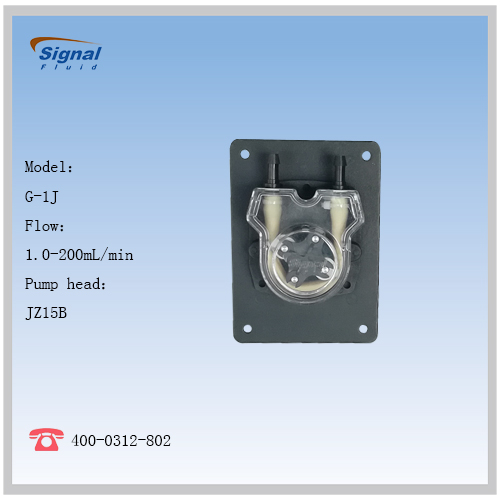

Model：G-1J/Z+JZ15A
category：Small flow OEM creep pump
Reference flow rate：1.0-200mL/min
category：Small flow OEM creep pump
Reference flow rate：1.0-200mL/min

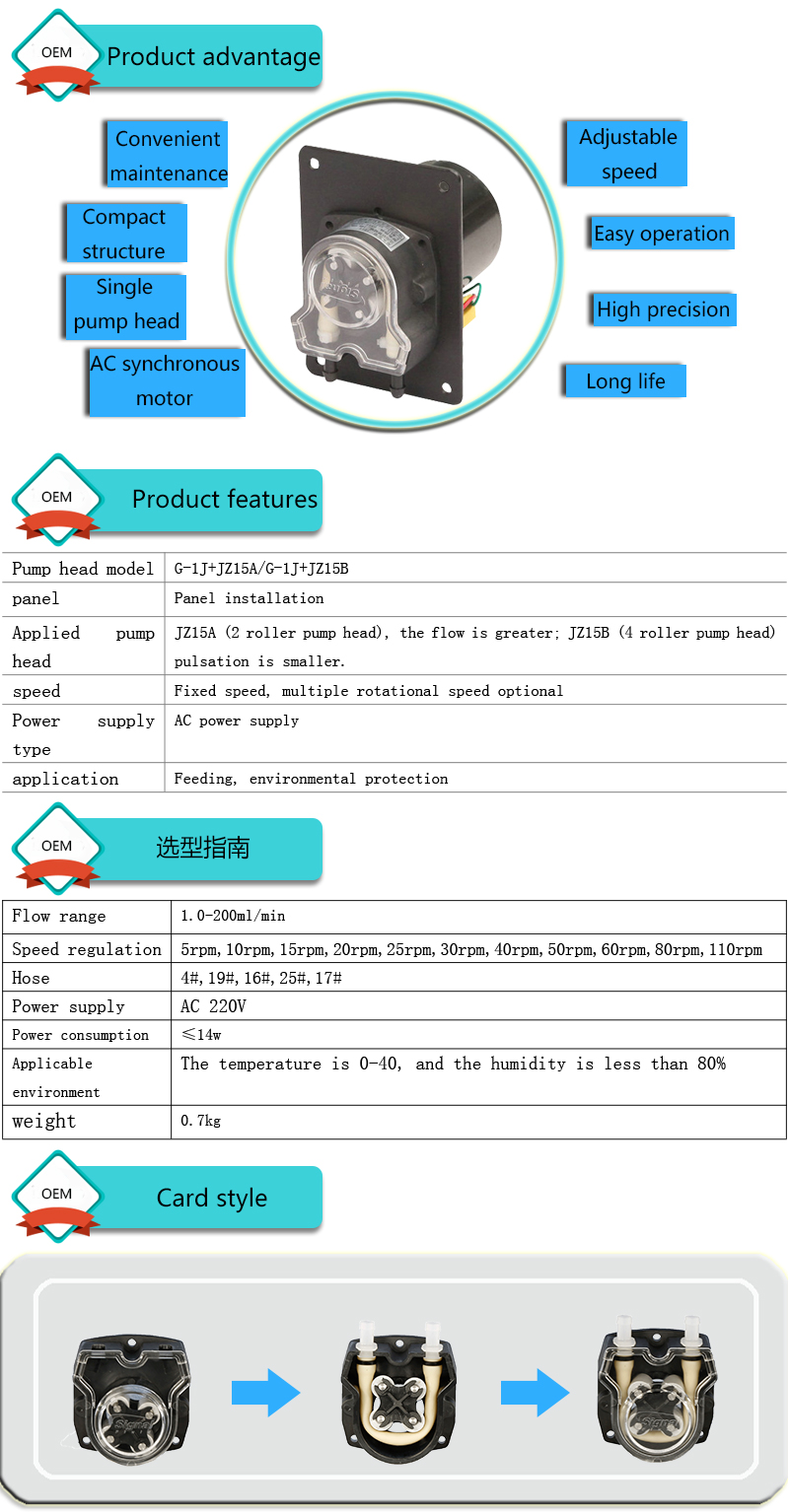

Characteristic：
Flow range:1.0-200mL/min
AC synchronous motor drive, multiple speed optional
JZ15A(2 roller pump head), larger flow; JZ15B(4 wheel pump head) has a smaller pulse
Panel Installation
AC synchronous motor driver
Fixed speed, multiple speeds available
AC power supply
Note: Optional DC motor
Industry application：
Chlorine dioxide generator
Biochemical Analyzer
1. Flow range:1.0-200mL/min
2. AC synchronous motor drive, multiple speed options
3. JZ15A(2 roller pump head), larger flow; JZ15B(4 wheel pump head) has a smaller pulse
4. Panel Installation
5. AC synchronous motor drive
6. Fixed speed, multiple speed options
7. AC power supply
8. Note: Optional DC Motor
